How to clear emergency stop alarm/fault (E2800) in liquid cooled units
In order to clear the alarm you will need to do the following:
1. Locate the toggle switch, this is located on the side of the unit. (Examples below depicted in red)

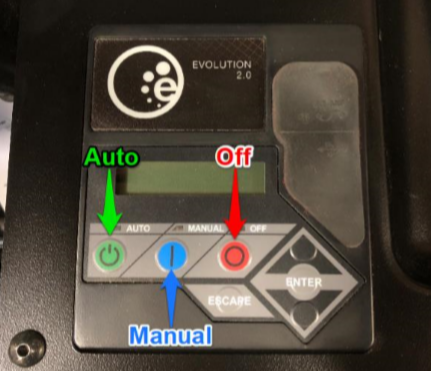

3. On the same side the switch is located there will be a control panel to the left of it. Open the lid and you will see the picture above. (depicted in red)
4. This will have an error code/ fault of E2800 emergency stop. In order to clear the alarm you will have to put the unit to 'Off' then press enter a few times and this should clear the fault. After should read either 'ready to run' or 'run hours (sequence of numbers)'.
5. Turn unit to auto and should have a green light now and be ready to run when you are in an outage.
