Air Cooled Installation diagrams and specs for connections on unit.
Here are some diagrams of Generac air-cooled generator unit specifications to assist you with the placement of gas and electrical connections. We can help you with specifics and these are subject to your local Authority Having Jurisdiction code. For more manuals and specs please use this to find more specifics. Where to find a parts manual, install manual, owners manual, exploded view or wiring diagram?

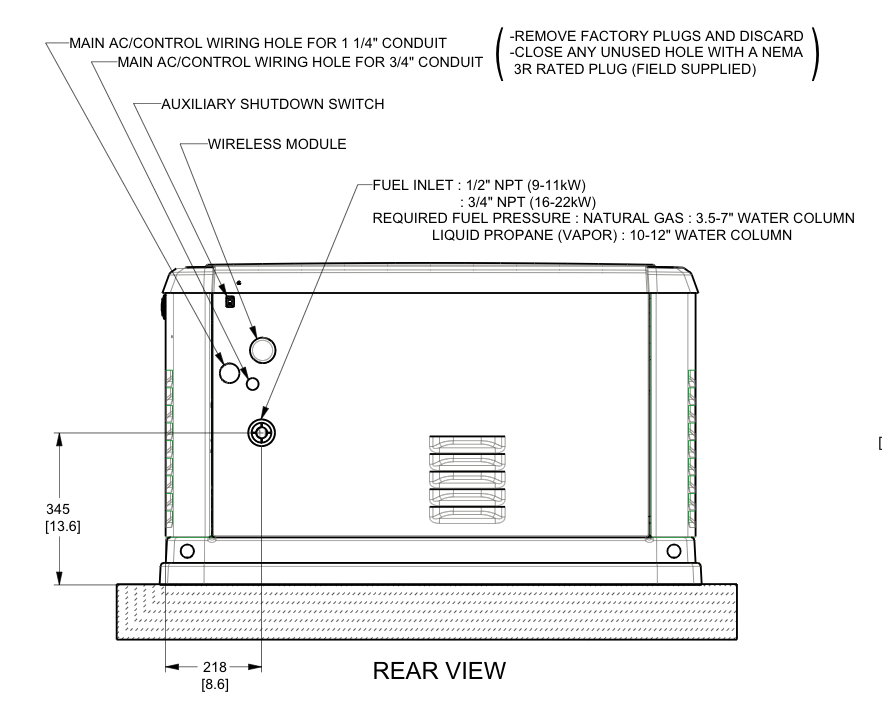

Unit View From Rear

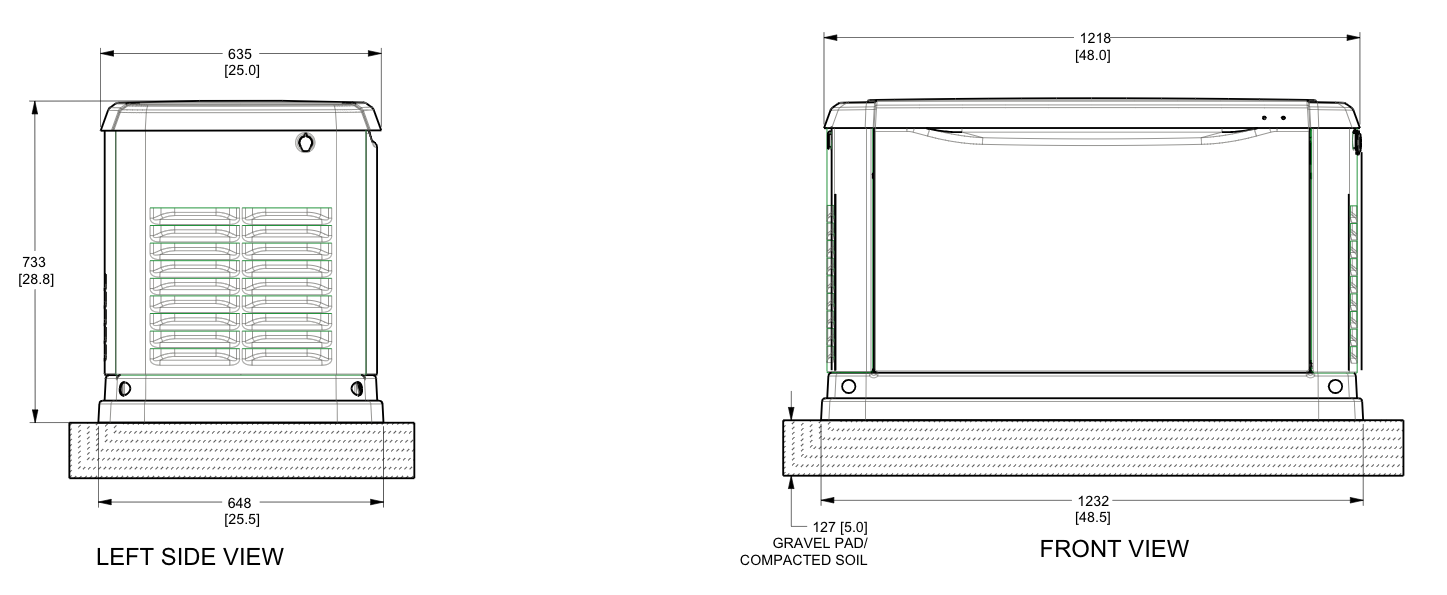

Side and Front View

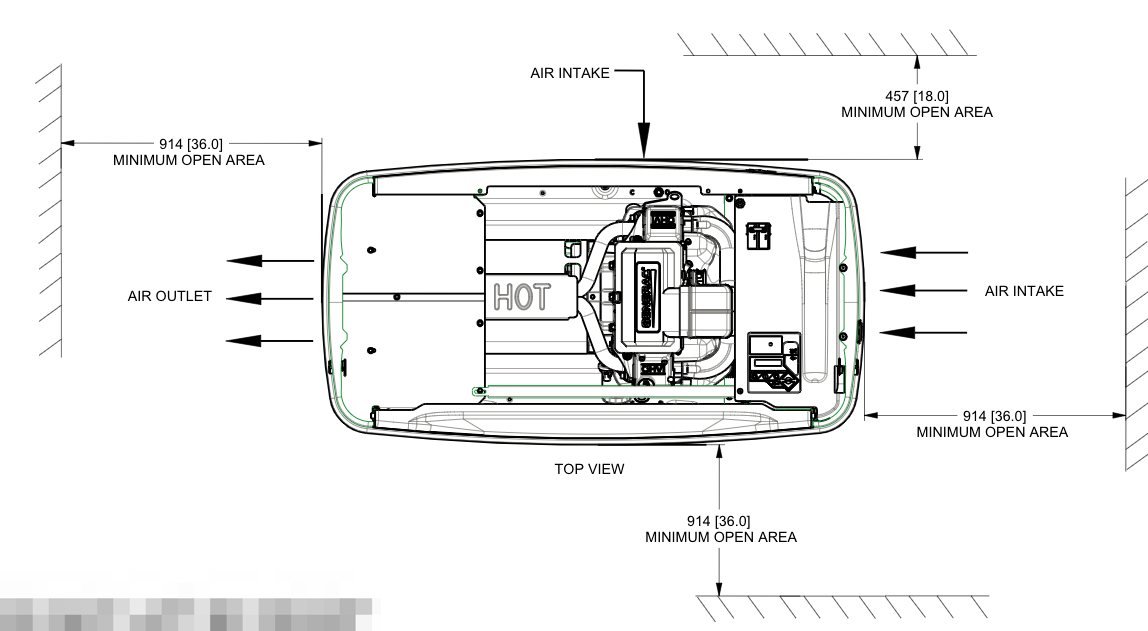

Looking Down from Top

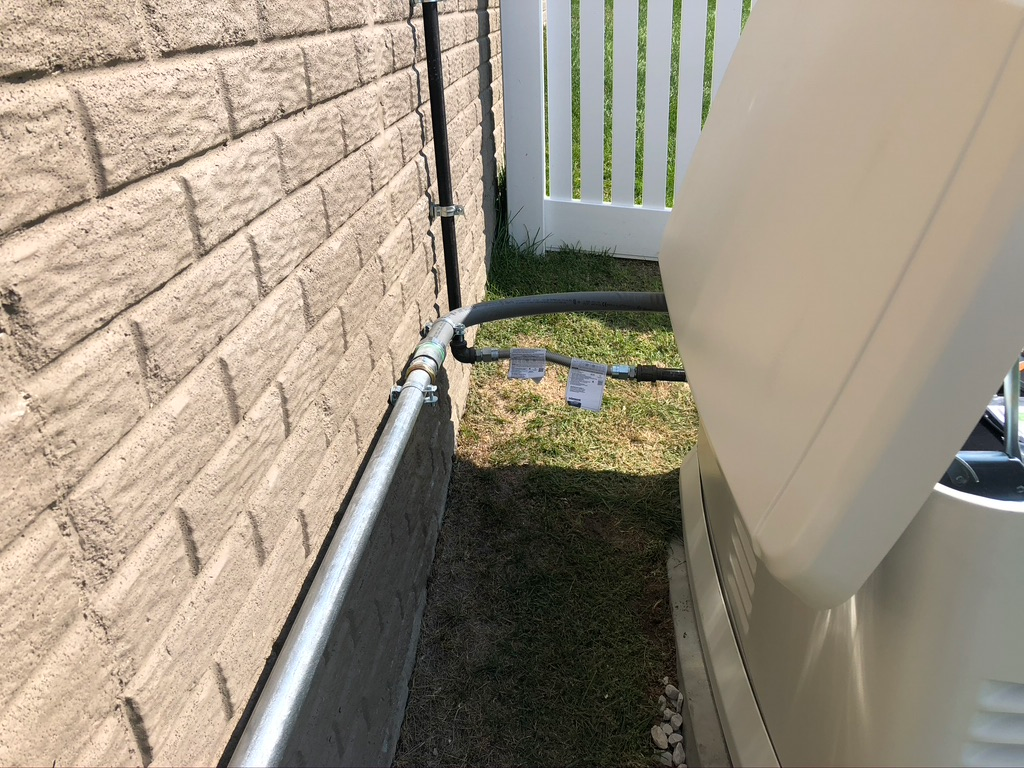

Picture from rear between house

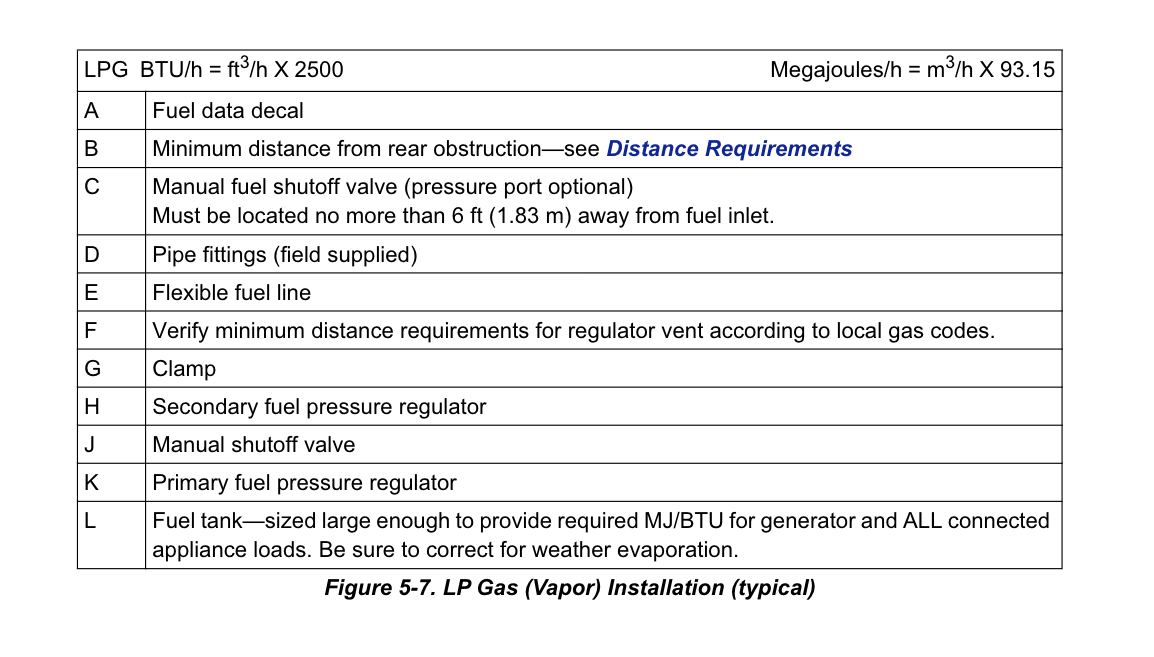

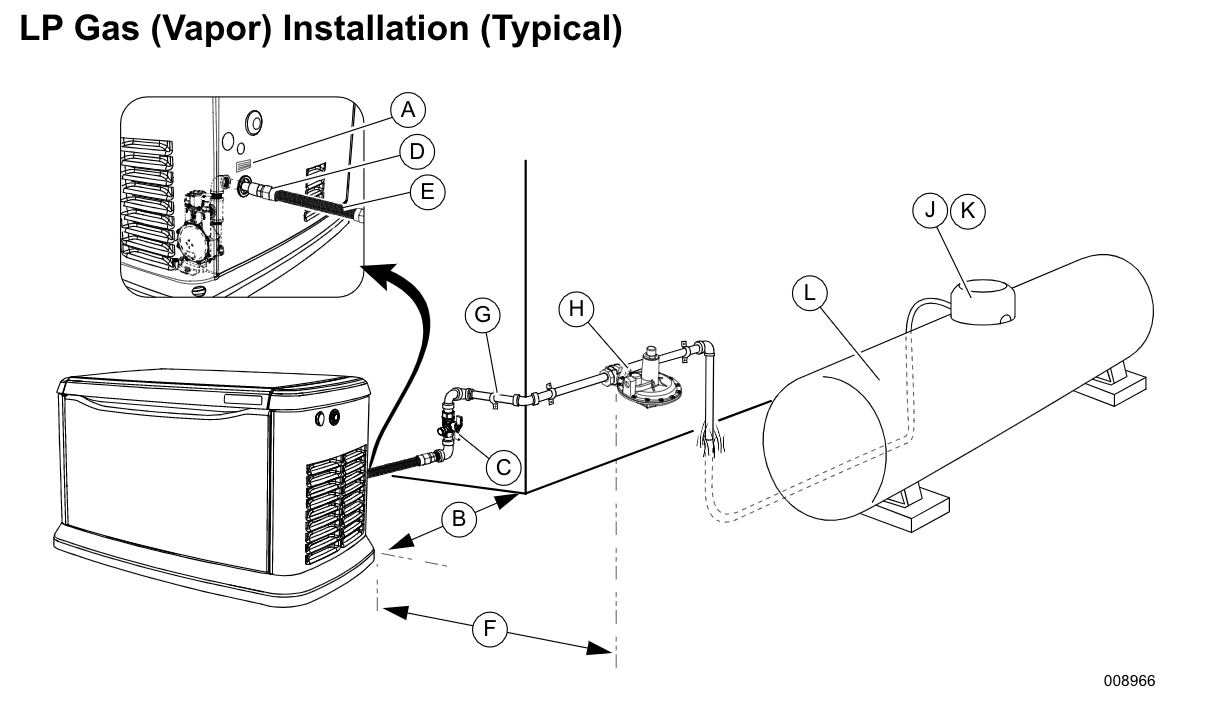

LP Gas Install

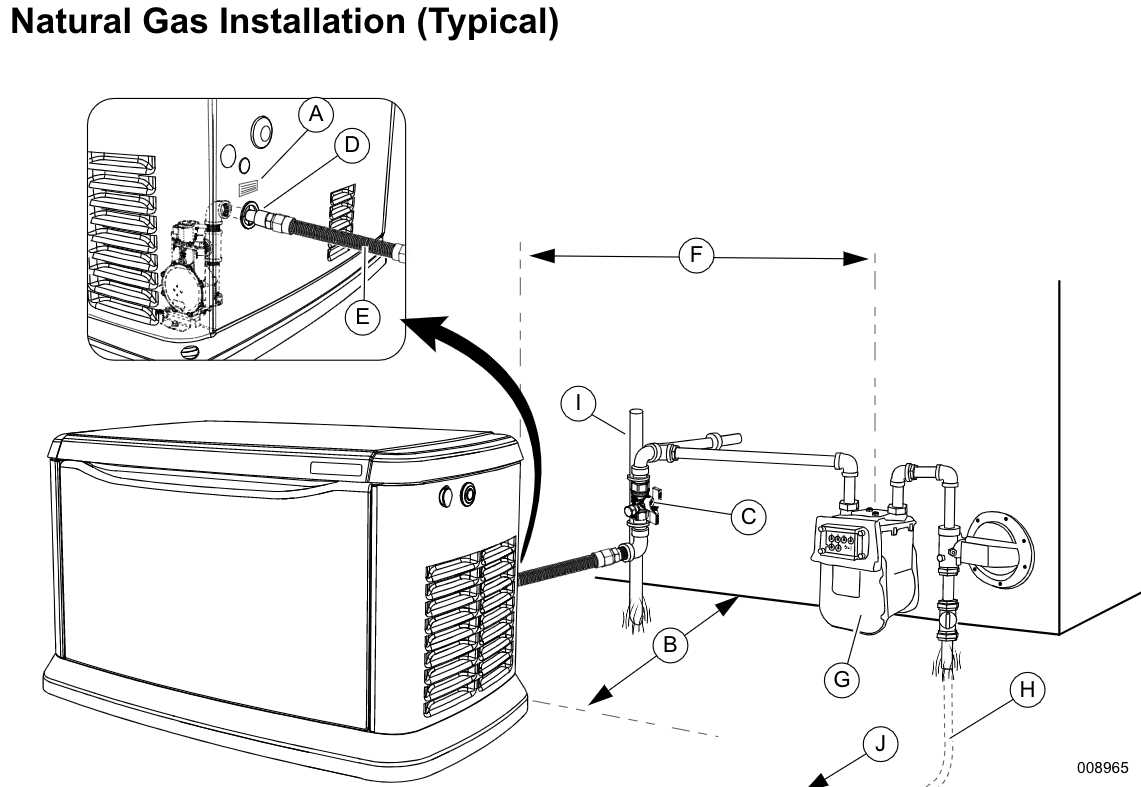

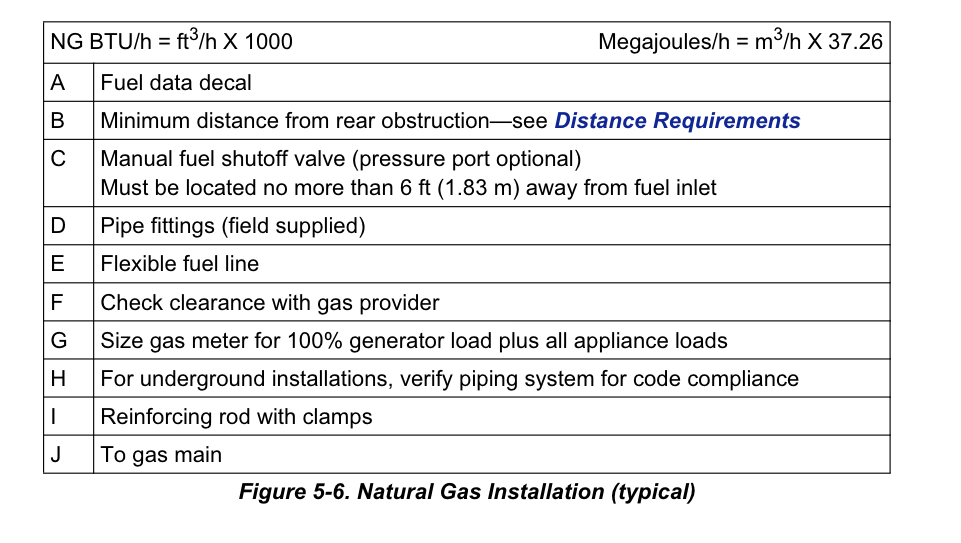

Natural Gas Install
